Durable / portable / high traffic
Trade shows, lobbies, and heavy use. Choose a wood or PVC substrate with aluminum or metal framing for a finished, movable panel system.
Panel systems built around the finished surface.
- Hook-receptive and decorative display fabrics
- Commercial panel substrates
- Framing and stand-alone applications
- Custom size and project support
Fabric panels
Panel systems built around the finished surface.
Durable, portable fabric panels for trade shows, point-of-purchase displays, lobbies, and classrooms. Panels are hook-and-loop ready and available framed or as insert-only boards sized to your existing frame.
- Hook-receptive and decorative display fabrics
- Commercial PVC and wood substrates
- Aluminum, metal, and stand-alone applications
- Custom size and project support
Quick guide
Which panel construction fits?
Hook & loop ready classrooms
Continuous changes and bulletin-style displays. Start with a fabric-faced panel — Braelok and other hook-receptive faces work well for frequent rearrange.
Already have a frame
Order a stand-alone insert panel precision-cut to your frame. Half-inch PVC fits most standard frames; other thicknesses available.
Substrate
Wood substrate panels
Reclaimed-wood, eco-friendly soundboards built for indoor long life. Acoustic, mobile, and a favorite for trade shows and educators who need durable fabric-faced boards that travel and install cleanly.
- Standard sizes 4 ft × 10 ft and 4 ft × 8 ft; smaller dimensions available
- Thicknesses 1/4 in, 1/8 in, and 1/2 in; fitted for frames from 1/2 in to 1/8 in
- Quarter-inch inserts available; half-inch offers lightweight stiffness, tackability, and sound absorption
- Hook compatible (hooks sold separately — preferred over damaging tacks)
- Flush-trimmed edges; dry-temp adhesive fabrics (Tempo, Premier, Regal, Braelok)
- Class A flammability rated fabrics; excellent acoustics
- Eco-friendly reclaimed wood chips and shavings
- Also available: Masonite, Lauan, sound board, and Homasote in those thicknesses
- Custom applications welcome
Substrate
PVC substrate panels
An affordable retail and trade-show commodity for backer boards, end caps, POP, headers, and indoor/outdoor event signage. Fire-repellant / self-extinguishing constructions are preferred when a fire rating matters. Durable and low-maintenance, with thermal and sound benefits; water-, chemical-, mold-, and mildew-resistant; adhesive-friendly with 3M and Lockfast fasteners.
- Standard sizes 4 ft × 10 ft and 4 ft × 8 ft; thicknesses 1/4 in, 1/8 in, and 1/2 in; black is standard (other colors on request)
- Frame-fit from 1/2 in to 1/8 in; hook compatible; flush edges
- Uniform surface for ink adhesion; fabrics Tempo, Premier, Regal, Braelok, and Dye Sub
- Class A fabrics; strong acoustics; custom applications welcome
- Non-PVC wood-based boards also available (Masonite, Lauan, sound board, Homasote)
Framing
Aluminum, metal, and stand-alone inserts
Choose a finished frame system or a precision insert for the frame you already have. Metal and aluminum options cover trade-show walls, lobbies, and temporary dividers; stand-alone inserts drop into existing openings.

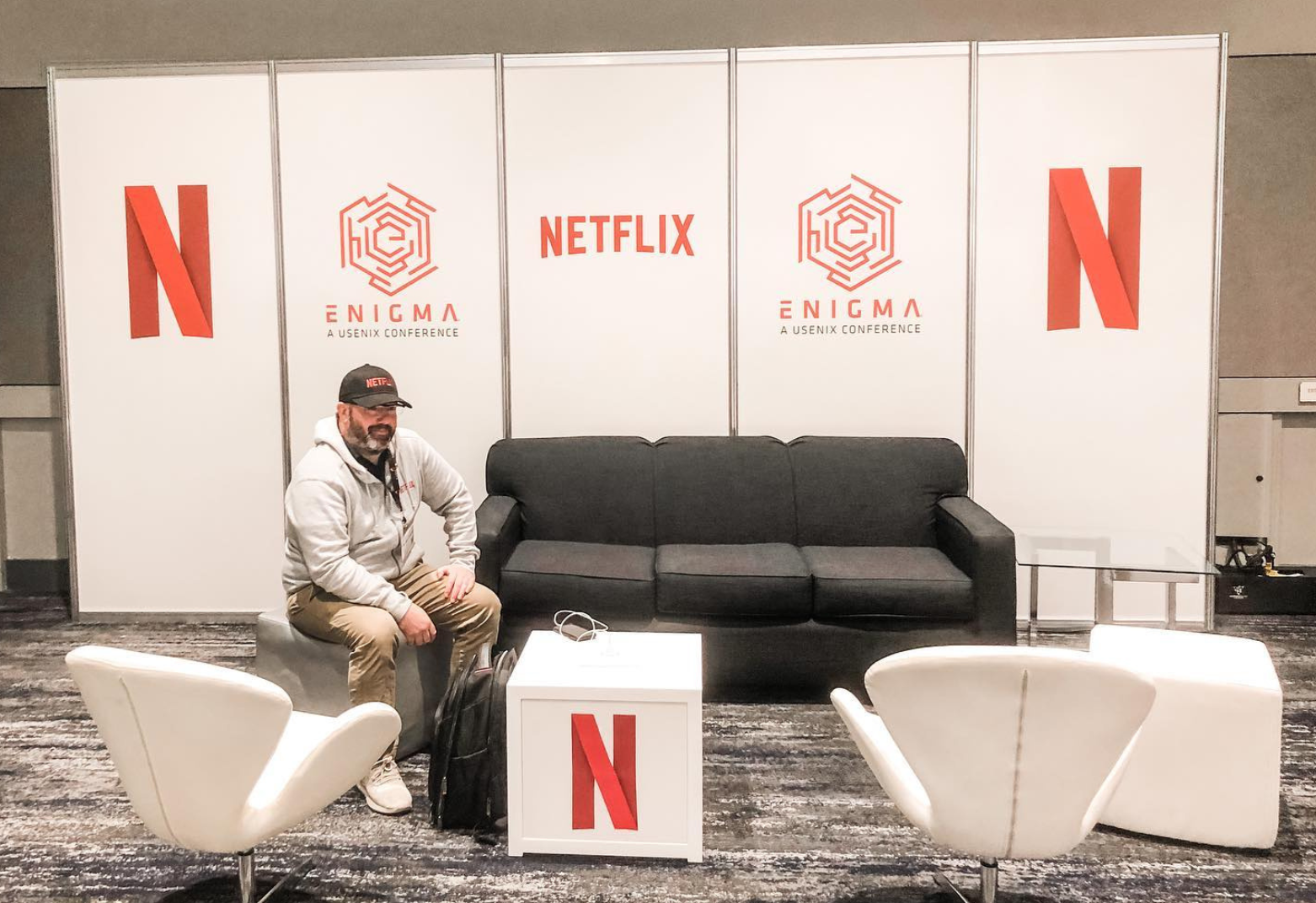

Aluminum frame

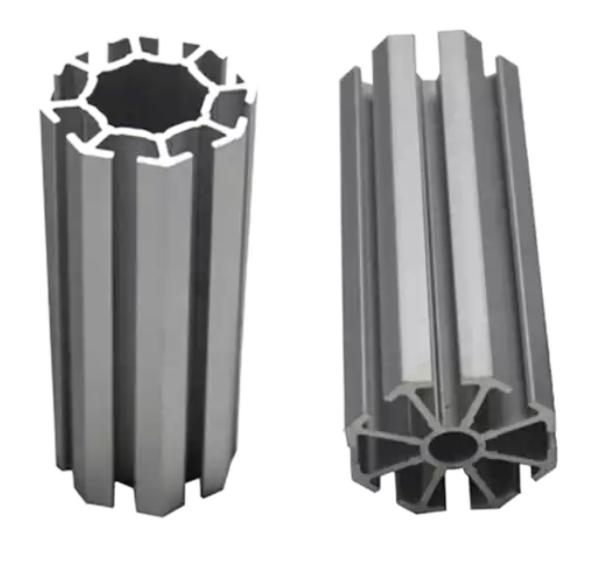

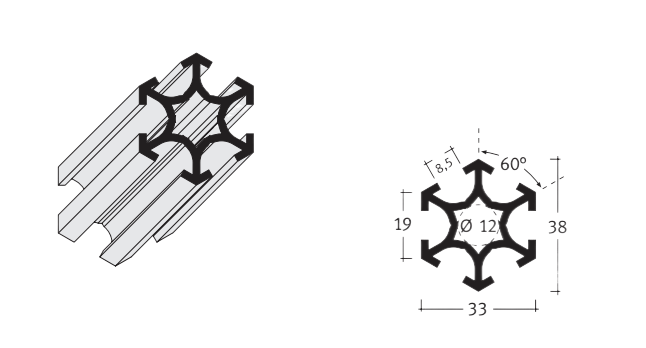

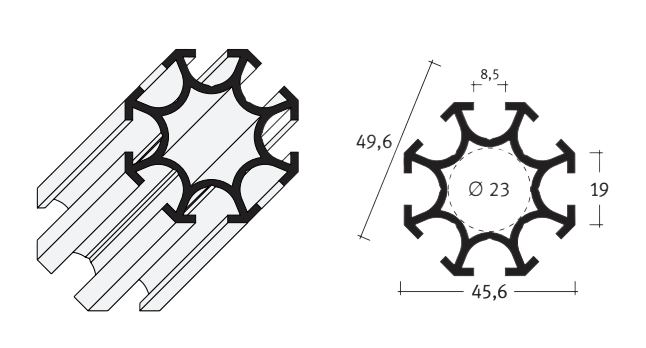

Supports half-inch panels that slide into flanking extrusions with six slots per extrusion. Lightweight, durable, and portable for temporary walls and dividers. Scalable, gloss finish, strong strength-to-weight, weather- and fire-resistant, and recyclable. Can ship assembled with easy panel changeouts.

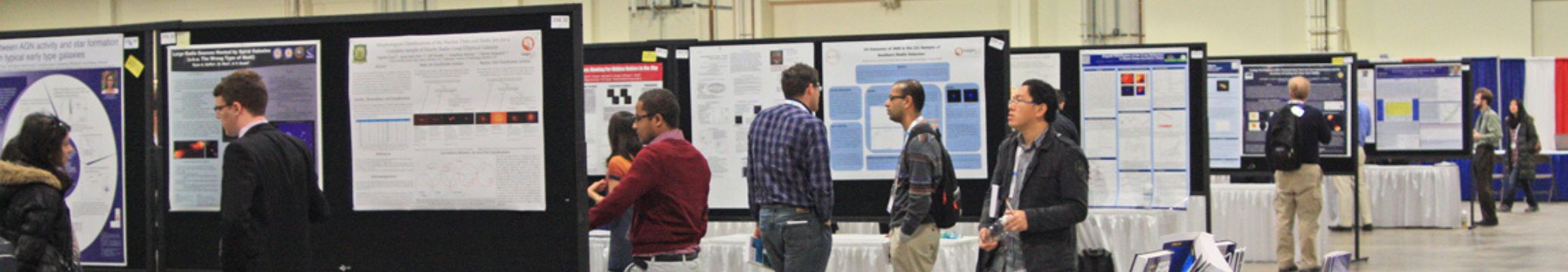

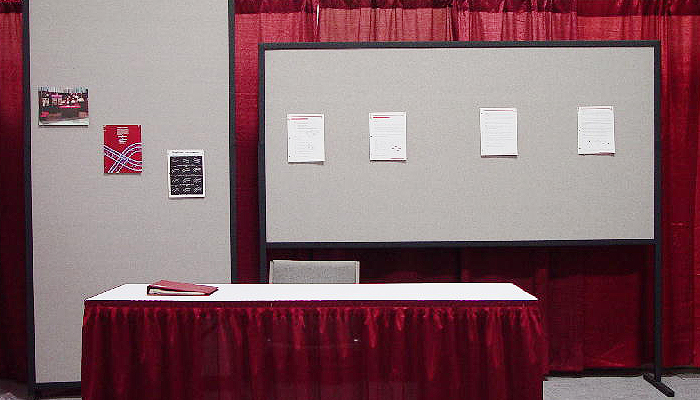

Metal frame

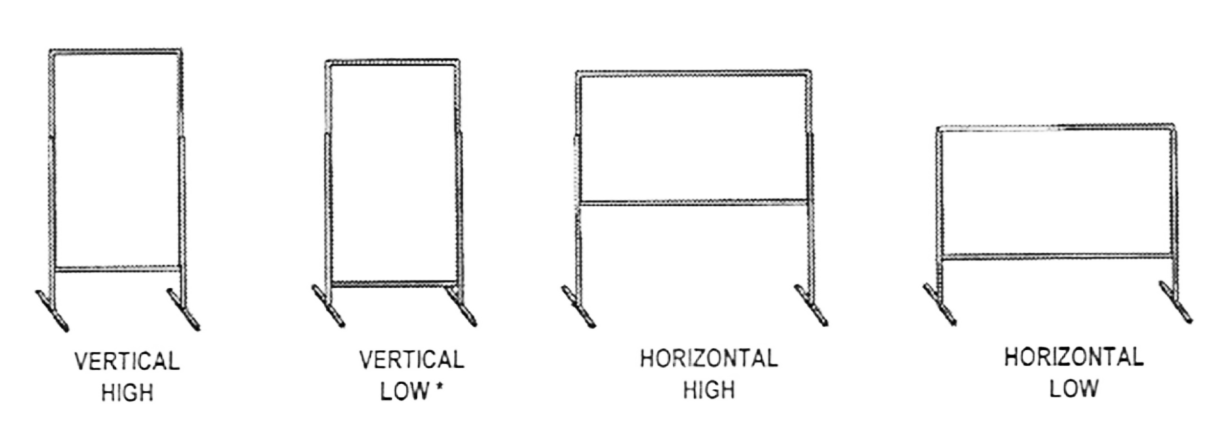

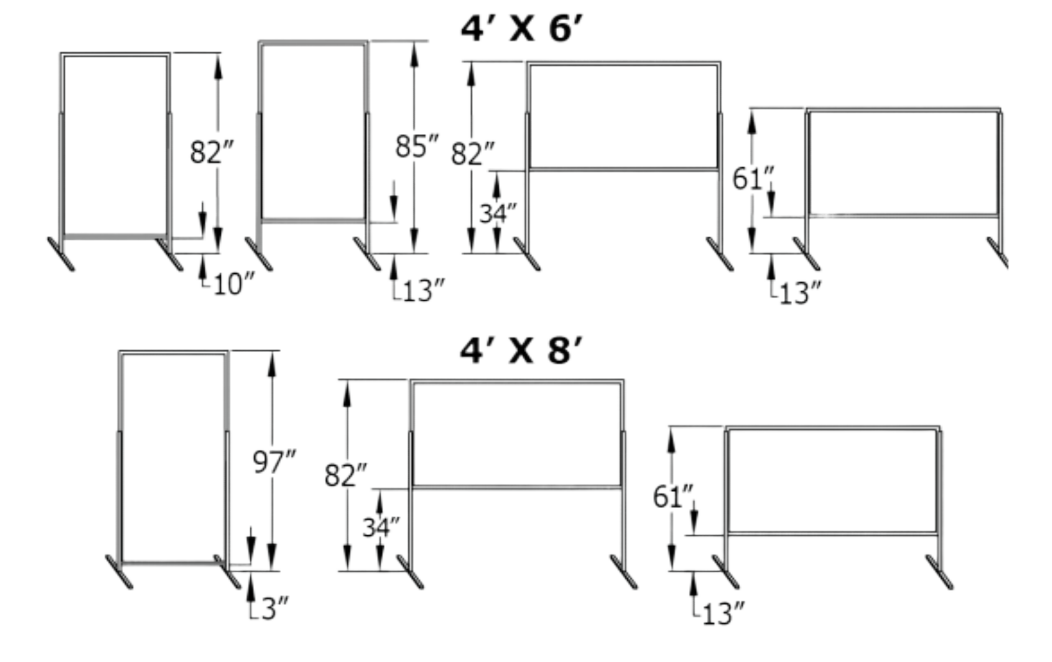

Steel frames with inserts for 1/4 in and 1/2 in panels. Simple insertion; three sizes; ships unassembled. Mount horizontal or vertical, high or low. Applications include signs, notices, bulletins, and advertising. Repair parts available. Insulating sound wood board is recommended when acoustics matter.

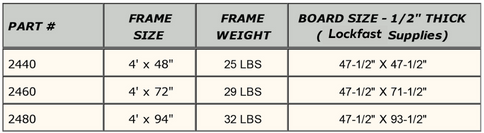

- Part 2440 — 4 ft × 48″; 25 lbs; board 47-1/2″ × 47-1/2″
- Part 2460 — 4 ft × 72″; 29 lbs; board 47-1/2″ × 71-1/2″
- Part 2480 — 4 ft × 94″; 32 lbs; board 47-1/2″ × 93-1/2″

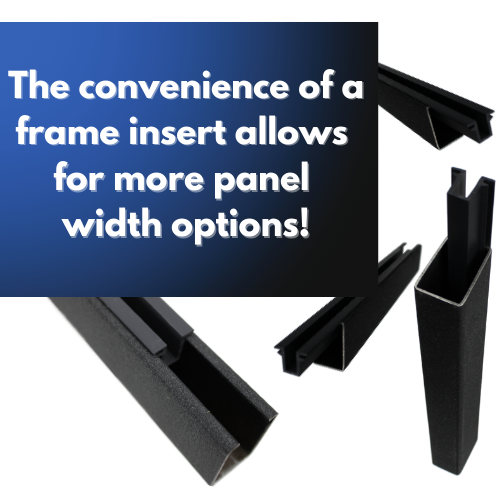

Stand alone / insert
When you already have a frame, order a precision-cut insert in standard thicknesses. Half-inch PVC fits most standard frames. Flush, display-ready edges — no extra trimming on site.
Surface
Fabric choices for the finished face
Which fabric goes on the panel? Browse the full line on Display Fabrics, or open a product page below. All listed fabrics are fire resistant and independently lab tested to NAFM upholstery standards. Dye Sub is also available when you need a printable face.
Tempo
100% warp knit nylon, polyester foam core, nylon jersey. 60″ width; approximately 45 yd rolls; 8 oz/sq yd; about 0.100″ / 0.050″ compressed.
Premier
63″ width; 50 yd; 9 oz; thermally activated polyester blend; 1/8″ thickness.
Regal
63″ width; 50 yd; thermally activated polyester blend; 1/8″ thickness.
Braelok
100% woven solution-dyed polypropylene; 5 oz; 0.060″; latex backing. Strong choice for hook-and-loop classroom and continuous-change displays.
Ensemble
Hook-receptive display loop fabric for bulletin boards, learning walls, and reusable panel faces.
Mohawk
Commercial display fabric for exhibit, presentation, and interior panel applications.
Fabric panels
Build panels around the finished surface.
Send finished size, fabric preference, substrate or frame style, and quantity. We will help confirm construction for school, commercial, or exhibit use.
